What is Wafering / Slicing
Equipment using wires with loose or fixed abrasives to create multiple wafers from continuous ingots or boules
Slurry Wire Saw vs Diamond Wire Saw

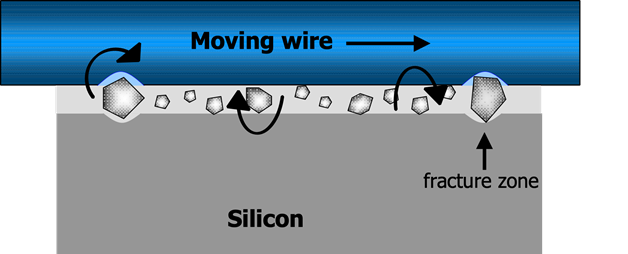

Slurry wire
A mixture of silicon carbide and glycol is used as an abrasive that erodes rather than cuts the ingot
Grit particles roll between wire and material
Grit particle speed is max. ½ of the wire speed
Slurry Wire Saw generally has:
Lower subsurface damage
Lower wire deflection in inhomogeneous material
Smoother surface

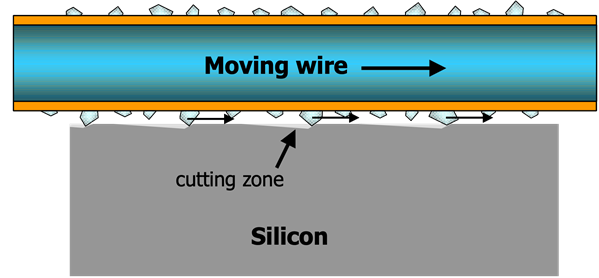

Diamond wire
Diamonds are coated on the wire to generate a true cutting action
Grit particles slide over workpiece
Grit particle speed equal to wire speed
Theoretically doubling of removal rate at same wire speed compared to slurry
Diamond Wire Saw generally has:
Lower cost per wafer for most applications
Much faster wire speed possible
Higher removal rate
More environment friendly due to water based cutting fluids
Cleaner machine and work pieces
Better TTV (no wire entrance cone)
Less heat development and better heat removal
